Principle of planetary reducer: The driving source (motor) starts the sun gear in a direct connection, and the sun gear drives the planetary gears assembled on the planetary gear carrier. The entire planetary gear system automatically rotates along the outer gear ring, and the planetary carrier connects the output shaft to achieve the purpose of acceleration. Higher reduction ratios require multiple sets of stage gears and planetary gears to be multiplied and accumulated.

Structural features: compact structure, good heat exchange, high precision, high transmission efficiency, strong applicability, lifelong maintenance-free

Application areas: Mechanical reduction devices for process equipment in many industries and fields such as metallurgy, mining, transportation, water conservancy, chemical industry, food, beverage, textile, tobacco, packaging, and environmental protection.

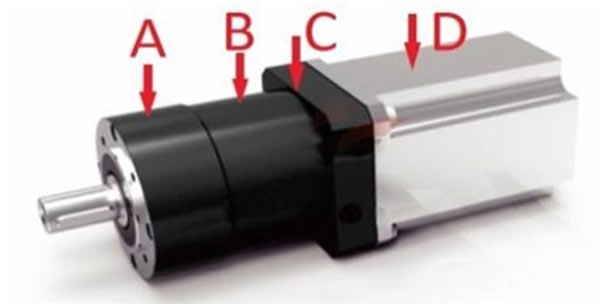

Component composition:

Planetary reducer requirements for grease:

Wear resistance: Reduce wear and temperature rise, meet the needs of lifelong lubrication of reducers

Noise reduction: Improve product comfort

Adhesion performance: Maintain a uniform oil film on the metal surface, reduce wear and noise

Mechanical stability: Prevent grease from softening after shearing, resulting in oil seepage and leakage

High and low temperature performance: Reduce low-temperature starting torque and high-temperature softening under high load conditions

Company’s solution for planetary gearboxes:

Our company uses unique polyurea thickener, refined synthetic oil, and special extreme pressure anti-wear agent, which has good high and low temperature performance, small starting torque at low temperature, no coking at high temperature, and good shearing performance. Under high temperature and extreme pressure conditions, the structure is not easy to be damaged, the structure is stable, and it has good adhesion to the metal surface.

Main technical indicators:

Items		Quality indicators	Measured values	Test standards
Appearance		Beige uniform paste	Beige uniform paste	Visual inspection
Use temperature range (℃)		-30～200	-30～200	—
Cone penetration 1/10mm		–	285-315	ASTM D217
NLGI level		1.5	1.5	ASTM D217
Dropping point ℃		260	–	ASTM D2265
Steel mesh oil separation ?24h ?100℃		＜5.0%	–	ASTM D6184
Evaporation loss ??1h ?120℃		＜5.0%	–	SH/T0337
Water resistance test 60min 40℃		＜5.0%	–	ASTM D1264
45# steel corrosion ??3h ?100℃		Qualified	Qualified	ASTM D4048
Four-ball wear scar 1200r/min 1h 75℃ 40KG		–	0.452mm	ASTM D2266
Four-ball test PD 1500r/min 10s		–	600	ASTM D2596
Low temperature torque (-40℃) mN.m	Start Run 10min Run 60min	– – –	110 50 –	ASTM D1478
Anti-oxidation performance 100h, 100℃		–	–	ASTM D942
Rust test 24h, 52℃		Qualified	Qualified	ASTM D1743

(The above data is for reference only and does not constitute a contract. )

Test products	Helical planetary reducer, spur planetary reducer (*Kai 80 type, first level)
Test equipment	Decibel meter, infrared thermometer, servo motor

Test requirements:

1. Temperature rise ≤75℃,

2. Noise ≤65Db,

3. The oil film on the tooth surface is intact



Test process: Reducer type: helical gear (grease amount: 25g)

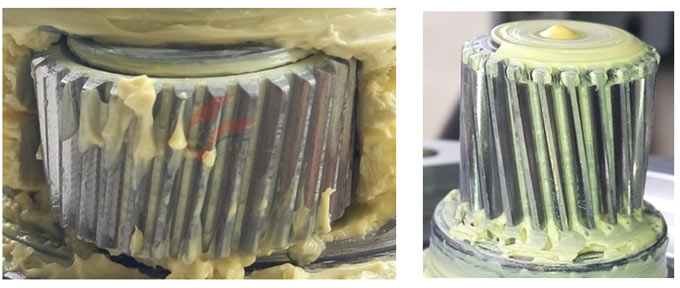

Oil film condition

Reducer type: straight teeth (grease amount: 20g)

Oil film condition



Test results:

Judging from the test records, using grease test, the temperature rise, noise and oil film conditions of the two types of planetary reducers are good, meeting the manufacturer’s requirements.
